⚡ 60W MOPA
🔬 JPT M7 E2 Source
🛡️ 3-Year Warranty
💰 Smart Value at $4,100
Free DDP Shipping
US, Canada, EU
Full MOPA Control
2 to 500 ns pulse width
3-Year Warranty
Source + full machine
$500+ Free Gifts
Rotary + extra lens
Air Cooled
No chiller needed

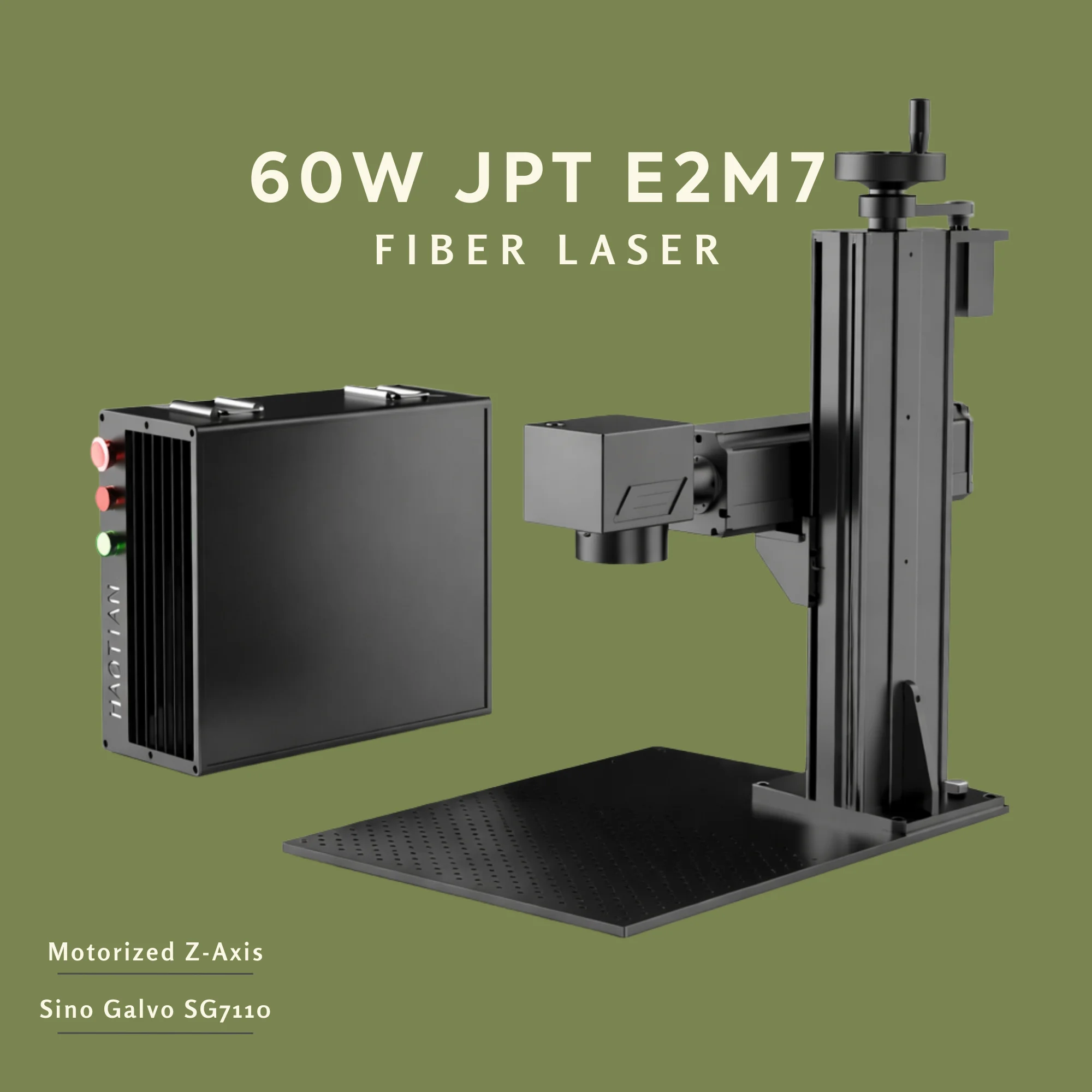

60W JPT M7 E2 Fiber Laser - Full MOPA Power, Smartest Price in the Lineup
The 60W E2 gives you everything the M7 MOPA platform is known for: color marking on stainless steel, deep metal engraving, and light cutting on thin sheets, all at the most accessible price point in the 60W range. Same 2.0 mJ pulse energy. Same 2 to 500 ns pulse width control. Same air-cooled simplicity. The difference is purely internal component sourcing, and for most shops running daily production, the output is identical to the E-series machines that cost $300 more.
Core Capabilities
Five Reasons This Machine Earns Its Spot in Your Shop
1
Full Color Marking on Stainless and Titanium
Adjustable pulse width from 2 to 500 nanoseconds gives you the same oxide-layer control as every other M7 machine in the Haotian range. Dial in blues, golds, reds, greens, and purples on 304 and 316 stainless steel or titanium. This is not a stripped-down source. The E2 has 17 preset pulse width modes, each tuned by JPT for clean, repeatable color output.
2
2.0 mJ Pulse Energy for Real Deep Engraving
The E2 delivers the same maximum pulse energy as the E-series 60W: 2.0 millijoules. That is the energy per pulse that determines how much metal you remove on each pass. For shops doing serial number plates, custom knife handles, firearm engravings, or jewelry work, 2.0 mJ at 60W means you are not waiting around for depth. More pulse energy per shot means more material removed per pass, which translates directly to shorter cycle times on every deep engraving job.
3
Air Cooled, Plug and Mark
No water chiller required. No plumbing. No distilled water maintenance. The 60W E2 runs on 24V DC power with under 230W total consumption. Set it on a bench, connect USB to your computer, and start marking. This is the highest power level you can get in a true air-cooled fiber laser, and it keeps your operating costs near zero.
4
Light Metal Cutting Up to Thin Sheets
The 60W handles cutting on very thin metals: foil-gauge stainless, brass shims, thin copper strips. It is not a CNC sheet metal cutter, and this page will not pretend it is. But for small-format cutting tasks like custom jewelry blanks, thin gaskets, or prototype parts in metals under 0.5 mm, the E2 handles it without needing a second machine.
5
EZCad 2 + LightBurn Ready Out of the Box
Ships with EZCad 2 Original (not Lite) pre-configured for your specific lens and galvo calibration. The markcfg7 calibration file is set at the factory for your exact machine. LightBurn Galvo compatibility is built in if you prefer a cross-platform workflow. Mac users go through LightBurn since EZCad is Windows-only. Both options are ready on day one.
Honest Comparison
E2 vs. E vs. M-Version: What Actually Differs
JPT makes three tiers of M7 MOPA sources at 60W. The output specs, including pulse energy, pulse width range, frequency range, and wavelength, are the same across all three. The difference is the origin of two internal electrical components: the seed source and the pump diodes.
This Machine
E2 Version
$4,100
- 60W, 2.0 mJ, 2-500 ns
- Domestically sourced seed and pump diodes
- JPT's current production standard
- Best value for daily production use
- Same color marking results
E Version
E (EM7)
$4,400
- 60W, 2.0 mJ, 2-500 ns
- Imported seed and pump diodes (Canada, France)
- Previous production generation
- Marginally higher long-term stability rating
- Same color marking results
Full M-Version
M7 M-Ver
$6,200
- 60W, 2.0 mJ, 2-500 ns
- Highest-grade imported internals throughout
- Best for 8+ hour daily industrial runs
- Maximum long-term stability guarantee
- Same color marking results
The honest take: For most buyers running a small to mid-sized business, the E2 and E produce identical results on every material. The internal component difference affects long-term stability characteristics that become measurable only after thousands of hours of continuous full-power industrial use. JPT's own website now lists the E2 as the current standard M7 model. The E2 is the successor, not a downgrade.
Specifications
Technical Specifications
| Parameter | Value |
|---|---|
| Laser Source | JPT YDFLP-E2-60-M7-M-R (MOPA) |
| Average Output Power | 60W |
| Maximum Pulse Energy | 2.0 mJ |
| Pulse Width Range | 2 to 500 ns (17 preset modes) |
| Pulse Repetition Rate | 1 to 4,000 kHz |
| Beam Quality (M2) | Less than 1.5 |
| Central Wavelength | 1064 nm |
| Output Beam Diameter | 7.0 mm (plus or minus 1.0 mm) |
| Cooling Method | Air cooled |
| Operating Voltage | 24V DC |
| Nominal Power Consumption | Less than 230W |
| Output Power Stability | Less than 5% |
| Emission Bandwidth | Less than 15 nm |
| Standard Working Area | 110 x 110 mm (upgradeable to 300 x 300 mm) |
| Galvo Scanning Head | High-speed galvo with dual red dot alignment |
| Z-Axis | Motorized height adjustment |
| Software | EZCad 2 Original + LightBurn compatible |
| Rated Source Lifespan | 100,000+ hours |
| SKU | HT-60-E2M7 |
Common Questions
Concerns You Probably Have (Answered Directly)
Is the E2 a "budget" laser that cuts corners?
No. The E2 is JPT's current production standard for the M7 line. The output parameters, including pulse energy, pulse width range, frequency, beam quality, and wavelength, are identical to the E-series. The difference is that the seed source and pump diodes are manufactured domestically in China rather than imported from Canada and France. JPT's own spec sheets confirm the same rated performance across both versions.
Will the color marking quality be the same as more expensive MOPAs?
Yes. Color marking on stainless steel and titanium is determined by pulse width and frequency settings, not by where the internal diodes were manufactured. The E2 has the same 17 preset pulse width modes and the same 2 to 500 ns range. The oxide layers it creates on metal surfaces are physically identical to those from an E-series or M-version source.
Can this machine handle production volume?
For small to mid-sized production runs, absolutely. The 60W E2 is air cooled with zero maintenance overhead, and at under 230W power consumption it runs all day without stressing your shop electrical. For 8+ hour continuous full-power industrial runs where absolute maximum stability matters, consider the M-version at $6,200.
How deep can it engrave?
The depth and speed depend on the material, the area being engraved, and your power and speed settings. At 60W with 2.0 mJ pulse energy, the E2 handles deep engraving jobs that would take significantly longer on a 30W machine. For jobs requiring deep engraving as a primary daily workflow, the 100W M7 at $6,900 is the better tool. The 60W handles deep work comfortably but the 100W does it faster on every single job.
Does it come with a warranty?
Full 3-year warranty covering the JPT source and the complete machine. If any part has a quality issue, Haotian Laser ships the replacement at no cost, and the broken part stays with you. Source defects go through JPT's manufacturer warranty, with Haotian Laser covering shipping both ways. After the warranty, lifetime email support at info@haotianlasers.com.
What if I need more power later?
The E2 is a complete standalone machine, not a platform you upgrade by swapping sources. If your volume grows and you need faster deep engraving or thicker metal cutting, the upgrade path is the 100W M7 ($6,900) or the 120W M7 ($8,500). Many Haotian buyers start with a 60W, grow their business, and add a higher-power machine as a second unit rather than replacing the first.
⚠️ What This Machine Cannot Do
- Not for tumblers or coated drinkware. Fiber lasers burn powder coatings rather than removing them cleanly. Use a CO2 galvo laser for tumblers.
- Not a sheet metal cutter. The 60W can cut very thin metals (foil gauge, under 0.5 mm) but it is not a replacement for a CNC fiber laser cutter. For sheet cutting, look at the CNC fiber laser range (1500W to 6000W).
- Cannot mark wood, leather, paper, or acrylic. The 1064 nm fiber wavelength does not interact with these organic materials. Use a CO2 laser instead.
- Cannot drill or process glass. Glass drilling requires the JPT M8 series with G3 PRO 2.5D galvo and EZCad3 software. For glass surface marking, UV lasers produce the best results.
- Not optimized for PCBs or heat-sensitive components. UV lasers provide cold marking that protects sensitive electronics. The fiber wavelength generates heat that can damage components.
📦 Everything Included in the Box
JPT YDFLP-E2-60-M7-M-R MOPA laser source, 100,000+ hour rated lifespan
High-speed galvo scanning head with dual red dot focus alignment
Motorized Z-axis tower for button-controlled height adjustment
Rotary attachment (your choice of D60, D80, or D100)
2 F-theta lenses (your choice from 70x70 to 300x300 mm)
OD5+ laser safety glasses
EZCad 2 Original software with factory-calibrated markcfg7 file
Foot pedal switch for hands-free operation
All cables, USB drive, and complete documentation
LightBurn Galvo compatibility built in
FAQ
Frequently Asked Questions
What does "E2" mean in the JPT model code YDFLP-E2-60-M7-M-R?
▾
YDFLP stands for Ytterbium Doped Fiber Laser Pulse. E2 designates the second-generation economy tier of internal components, specifically the seed source and pump diodes. The 60 is the average power in watts. M7 is the JPT MOPA series. The first M indicates M-grade packaging, and the R means a built-in red guide laser is included. The E2 is now JPT's standard production model for the M7 lineup, replacing the earlier E-series on their official product pages.
Can the 60W E2 do the same color marking as the EM7 best seller?
▾
Yes. Both sources share the same MOPA architecture, the same adjustable pulse width range (2 to 500 ns), the same frequency range (1 to 4,000 kHz), and the same 2.0 mJ maximum pulse energy. Color marking on stainless steel and titanium depends on these output parameters, not on the origin of the internal seed and pump diodes. The colors you produce on the E2 are identical to those from the EM7.
Is the E2 replacing the E-series or is it a lower-tier product?
▾
JPT's own website now lists the E2 as the current M7 model. It is the successor to the E-series, not a downgrade positioned below it. JPT moved to domestically sourced seed and pump diode components to reduce cost and improve supply chain reliability. The E-series will continue to be available while existing inventory lasts, but the E2 is where JPT's M7 line is headed going forward.
Will the E2 last as long as the E or M-version in heavy daily use?
▾
All three versions carry the same 100,000+ hour rated source lifespan from JPT. The practical difference in longevity relates to long-term output stability under continuous high-power operation over many thousands of hours. The imported seed and pump diodes in the E and M-versions have a slight edge in stability measurements at extreme duty cycles. For a shop running 4 to 6 hours per day, this difference is not detectable in real-world use. For a factory running the source at maximum power 10+ hours every day, the M-version provides additional margin.
What materials can the 60W E2 mark?
▾
All metals: stainless steel, aluminum (bare and anodized), titanium, brass, copper, tool steel, hardened steel, gold, silver, platinum. Also works on some engineering plastics (ABS, POM, nylon) with MOPA-optimized short pulse settings. Does not work on wood, leather, paper, acrylic, glass, or coated drinkware. For those materials, CO2 or UV lasers are the right tools.
How does the 60W E2 compare to a 50W LP-series laser?
▾
The biggest difference is MOPA vs. fixed pulse. The LP series has a fixed 200 ns pulse width and cannot produce color marks on stainless steel or titanium. The E2 has fully adjustable pulse width from 2 to 500 ns, giving you color marking, finer control on heat-sensitive materials, and cleaner results on plastics. The E2 also delivers 2.0 mJ pulse energy compared to 1.25 mJ on the 50W LP, meaning faster deep engraving and more material removal per pass.
Can I use this machine on a Mac?
▾
EZCad 2 runs only on Windows (7, 8, 10, and 11). Mac users run LightBurn Galvo edition, which supports macOS natively and connects to the machine the same way. LightBurn is a separate purchase from LightBurn Software but the Haotian 60W E2 is fully compatible with it out of the box.
What is the markcfg7 file and why does it matter?
▾
The markcfg7 file is the lens calibration data programmed at the Haotian factory for your specific machine and lens combination. It tells the controller how to translate your design coordinates into galvo mirror angles. If this file is overwritten or deleted, your marks will be distorted. Always keep a backup copy before updating software. Haotian can re-send the original file if needed, but restoring from your own backup is faster.
🛡️ 3-Year Full Warranty
Covers the JPT laser source and the complete machine for 3 full years from delivery. If any part has a quality problem during the warranty period, Haotian Laser ships the replacement part free of charge and the broken part stays with you.
Source defects are handled through JPT's manufacturer warranty. Haotian Laser covers shipping both directions, so the warranty costs you nothing out of pocket.
After the warranty expires, lifetime email support continues at info@haotianlasers.com.
🚚 Free DDP Shipping
United States, Canada, and EU: Free DDP (Delivered Duty Paid) shipping. Zero customs fees. Zero surprise charges. Approximately 30 days from order to delivery, including production lead time.
All other countries: Free CIF shipping worldwide, approximately 12 to 14 days. Customer handles duties at destination.
Every machine is built to order with your selected lens sizes, rotary, and any optional upgrades configured before shipping.
Explore the Lineup
Consider These If Your Needs Are Different
Ready to Start?
Questions about the 60W E2, material compatibility, or which configuration fits your shop? Our team responds within 24 hours.
📧 Email info@haotianlasers.com
