1500W Max Photonics Source
1500 Γ 3000 mm Bed
2-Year Machine Warranty
15-Day Production Lead
14 mm
Carbon Steel Cut
80 m/min
Rapid Traverse
Β±0.03 mm
Locating Precision
100,000 hr
Source Service Life
2 Years
Full Machine Warranty

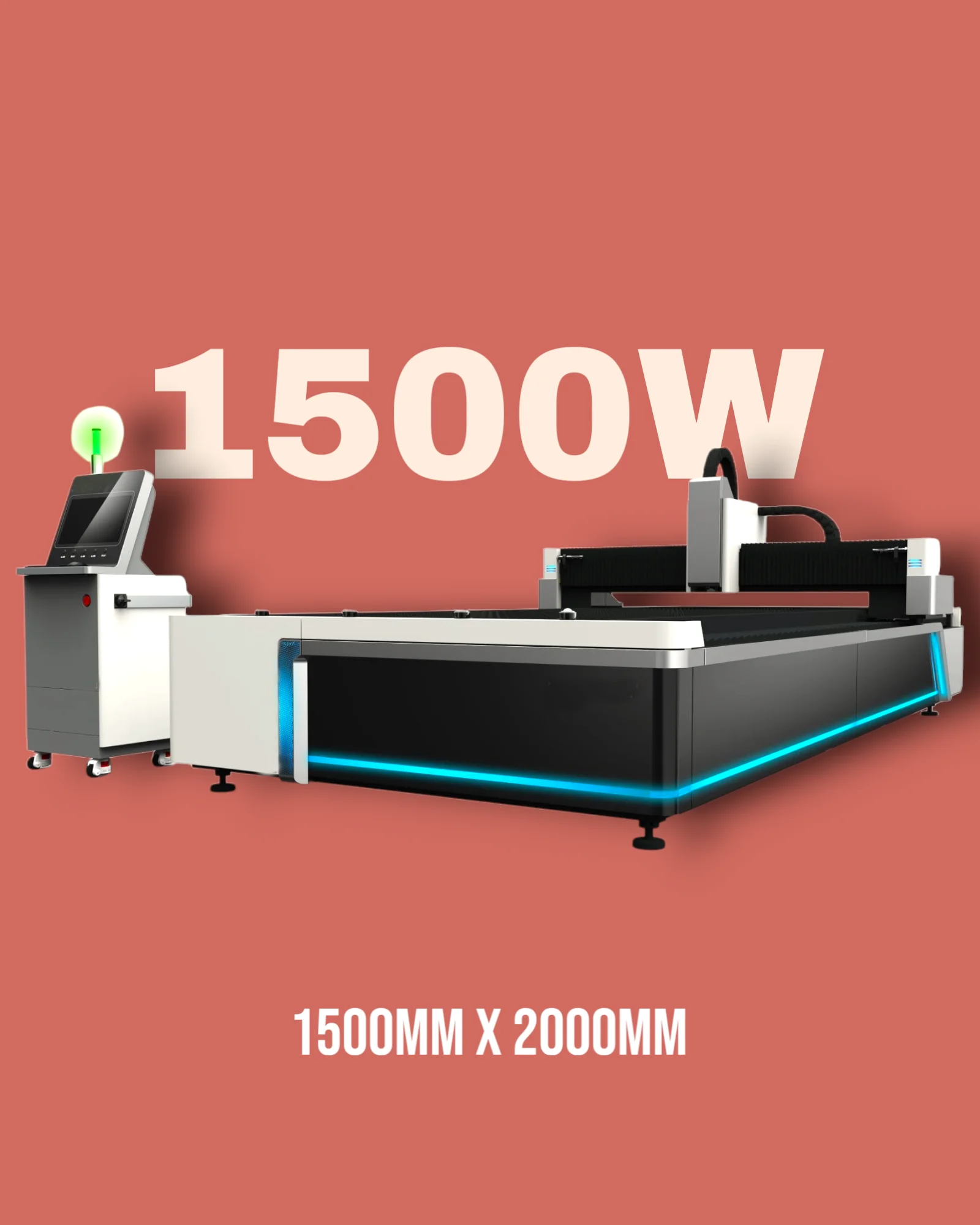

The 1500W fiber laser cutting machine that cuts 14 mm mild steel every shift, without overheating.
The HT-F1530 is a CNC fiber laser cutting machine for metal, built for shops that cut steel for a living. Designed as a production fiber laser cutter for metal sheet up to 14 mm carbon steel, 7 mm stainless, and 4 mm aluminum, it pairs a Max Photonics 1500W source with a Raytools BM110 auto-focus head, Taiwan PMI rails, TBI ball-screws, and Inovance servos. CypCut on the front. S&A industrial chiller in the crate.
This is the right laser cutting machine when: you cut steel, stainless, aluminum, brass or copper sheet up to 14 mm regularly, and you have been losing hours to a CO2 tube that needs alignment or to a cheaper fiber laser cutter that drifts out of tolerance every six months.
Sheet-metal fab, HVAC, kitchen equipment, signage, automotive brackets, agricultural implements: as a laser cutting machine for sheet metal up to a full 4 Γ 8 sheet, the named-brand component list holds tolerance shift after shift.
$19,500
In production
FOB China Β· CFR worldwide Β· 15-day lead time from cleared payment
Real-world cut capacity
What a 1500W fiber laser cutting machine actually cuts.
Not brochure numbers. These are the thicknesses your operator will be cutting on a Tuesday afternoon, with N2 for stainless and O2 for mild steel.
Carbon Steel
14mm
O2 assist. Sweet-spot is 1 to 8 mm at production speed.
Stainless Steel
7mm
Bright, oxide-free edge with N2 assist.
Aluminum
4mm
Reflective metal handled cleanly by the 1064 nm fiber wavelength.
Brass & Copper
4mm
Yes, copper too, with the BM110 head and proper assist gas.
Why this machine, specifically
Five reasons this CNC fiber laser holds tolerance for ten years.
1
Max Photonics 1500W source rated for 100,000 hours.
The HT-F1530 fiber laser cutting machine ships with a tier-1 Chinese-built fiber source that cutting machines on three continents already run in production. Diodes are rated for 100,000 hours of service life, which is more than ten years of single-shift operation before any source-related maintenance is on the calendar.
Why this matters: a CO2 glass tube needs replacement every few thousand hours of use, and even an RF metal tube tops out at roughly 20,000 to 50,000 hours. The fiber source has no consumables in the beam path.
2
Raytools BM110 auto-focus head with capacitive height tracking.
The cutting head reads the sheet surface continuously and adjusts focal height in real time. This is what lets the machine handle warped or imperfect sheet without crashing the nozzle. Auto-focus also means no manual Z-tweaking when you change material thickness, so a single program runs across mixed-thickness jobs.
Why this matters: spare lenses and nozzles for the BM110 are stocked worldwide. You will never be locked into a proprietary head with a six-week parts wait.
3
PMI Taiwan rails, TBI Taiwan ball-screws, Inovance servos.
The motion system on this fiber laser cutter for metal is the same component lineage you find on Japanese and German metalworking machines that cost five times the price. PMI square rails carry the gantry. TBI pre-loaded ground ball-screws drive the X, Y, and Z axes. Inovance closed-loop servos hold Β±0.03 mm locating precision and Β±0.02 mm repeat precision.
Why this matters: cheap fiber cutters substitute unbranded servos and no-name guides at this price point. That is why they fall out of square within a year. The HT-F1530 component list is fixed.
4
CypCut + FSCut 2000: the laser cutting machine CNC standard.
CypCut is the same control software the larger Chinese fiber-cutter brands ship. It imports DXF, DWG, AI, PLT, and a dozen other formats. Auto-nesting, lead-in and lead-out, micro-joints, fly-cut, and common-line cutting are all built in. An operator who has used AutoCAD or CorelDRAW will be programming jobs within a day.
Why this matters: no proprietary software lock-in. Tutorials, forum threads, and YouTube videos for CypCut exist in every major language.
5
Schneider electricals, SMC pneumatics, S&A chiller, all included.
The cabinet uses Schneider contactors and breakers, so any local industrial electrician already knows the parts. SMC solenoids handle the assist-gas pneumatics at 1.6 MPa without leaking. The S&A dual-circuit chiller is in the crate, not an upsell. The frame is welded, stress-relieved, and machined flat after annealing so geometry stays stable.
Why this matters: there is no surprise add-on after the wire transfer. Every component on the official BOM ships with the machine.
Open the panel
The full bill of materials.
Most importers will not tell you what is inside their cabinet, because the answer is "whatever was cheapest that month." Here is exactly what is bolted into every HT-F1530 laser cutting machine, by name, by brand, and by country of origin.
π¨π³
Laser source Β· 1500W
Max Photonics
China Β· Tier 1
100,000-hour rated diodes. Same source family used in industrial production lines worldwide.
π¨π
Cutting head Β· auto-focus
Raytools BM110
Switzerland Β· Industrial
Auto-focus with capacitive height tracking. Spare optics and nozzles stocked globally.
π¨π³
Servo motors & drivers
Inovance
China Β· Tier 1
Closed-loop servos on X, Y, Z. Smooth at 80 m/min rapid, repeatable to Β±0.03 mm.
πΉπΌ
Linear guide rails & blocks
PMI
Taiwan
High-precision square rails. The same brand on Japanese and German metalworking machines.
πΉπΌ
Ball screws Β· X, Y, Z
TBI
Taiwan
Pre-loaded ground ball-screws with minimal backlash. Holds tolerance for years.
π―π΅
Speed reducer
Shimpo
Japan
Quiet, low-backlash gearing. Keeps the gantry square at production speed.
π«π·
Electrical apparatus
Schneider
France
Contactors, breakers, push-buttons. CE-compatible cabinet your electrician already trusts.
π―π΅
Pneumatic components
SMC
Japan
Solenoids and fittings on the assist-gas circuit. No leaks at 1.6 MPa.
π¨π³
Industrial chiller
S&A
China Β· OEM grade
Dual-temp circuit for the fiber source plus the cutting head. Included in the crate.
π¨π³
Control software
CypCut + FSCut 2000
Friendess Β· Industry standard
Imports DXF, DWG, AI, PLT. Auto-nest, lead-in / lead-out, micro-joints, fly-cut.
π
Following system
Capacitive non-contact
Safety system
No more crashed nozzles on warped sheet. The head floats above the plate.
π¨π³
Frame & gantry
Welded & annealed steel
Stress-relieved
Machined flat after annealing. Geometry stays stable shift after shift.
Cut chart Β· 1500W
Workshop reference card for the laser cutting machine for steel and stainless.
Pin this above the machine. Speeds and gas pressures are the factory cutting parameters for the HT-F1530 1500W fiber laser cutting machine with a clean sheet, factory-tuned head, and dry assist gas. Real-world tuning shifts these values by 10 to 15 percent.
| Material | Thickness | Speed (m/min) | Assist Gas | Pressure (MPa) | Edge Quality |
|---|---|---|---|---|---|
| SS | 1 mm | 25 | N2 | 1.0 | Mirror, no oxide |
| SS | 2 mm | 7.0 | N2 | 1.4 | Bright, square |
| SS | 3 mm | 4.0 | N2 | 1.8 | Bright, square |
| SS | 4 mm | 2.0 | N2 | 1.8 | Production |
| SS | 5 mm | 1.3 | N2 | 2.0 | Production |
| SS | 6 mm | 0.7 | N2 | 2.0 | Production |
| CS | 1 mm | 25 | O2 | 1.0 | Sharp, fast |
| CS | 3 mm | 4.0 | O2 | 0.12 | Production |
| CS | 6 mm | 1.6 | O2 | 0.14 | Production |
| CS | 8 mm | 1.2 | O2 | 0.14 | Production |
| CS | 10 mm | 1.0 | O2 | 0.16 | Production |
| CS | 12 mm | 0.8 | O2 | 0.18 | Heavy cut |
| CS | 14 mm | 0.6 | O2 | 0.20 | Max capacity |
| AL | 1 mm | 10 | N2 | 1.4 | Clean |
| AL | 2 mm | 3.5 | N2 | 1.6 | Production |
| AL | 3 mm | 1.6 | N2 | 1.8 | Production |
| AL | 4 mm | 0.9 | N2 | 2.0 | Max capacity |
| Cu / Brass | 1 mm | 5.0 | N2 | 1.6 | Reflective, managed |
| Cu / Brass | 2 mm | 2.0 | N2 | 1.8 | Production |
| Cu / Brass | 3 mm | 1.0 | N2 | 2.0 | Heavy cut |
| Cu / Brass | 4 mm | 0.6 | N2 | 2.0 | Max capacity |
Speeds shown are factory baseline values for a clean sheet, factory-tuned head, and dry assist gas. Real-world tuning typically shifts these values by 10 to 15 percent depending on plate quality, ambient conditions, and consumable wear.
Who buys this machine
A laser cutting machine for sheet metal shops that need to ship.
The 1500 Γ 3000 mm bed eats a full 4 Γ 8 sheet of mild steel or stainless. Anyone billing for parts against a deadline is the right buyer for this fiber laser cutter for metal.
Sheet-metal fabrication
HVAC ductwork
Kitchen equipment & sinks
Architectural metalwork
Signage & advertising
Decorative panels
Automotive parts & brackets
Agricultural implements
Steel cabinets & enclosures
Elevator components
Lighting & lamp bodies
Stainless tableware
Why fiber, not CO2
Stop paying for mirrors that need cleaning.
A 1500W fiber cuts faster, runs on roughly half the electricity, and never sends you chasing mirror alignments at 11 p.m. Here is the honest comparison.
| HT-F1530 Β· 1500W Fiber | Typical 150W CO2 | Older 500W Fiber | |
|---|---|---|---|
| Cuts metal? | Yes: CS, SS, AL, Cu, brass, GI | Thin sheet only, max 1.5 mm CS | Yes, slower |
| Max mild steel | 14 mm | ~1.5 mm | ~6 mm |
| Wall-plug efficiency | ~30% | ~10% | ~25% |
| Mirror alignment | None, fiber-delivered | Every few weeks | None |
| Source service life | ~100,000 hours | Glass tube: a few thousand hr | ~80,000 hours |
| Reflective metals | Cuts copper & brass to 4 mm | Risk of back-reflection damage | Limited |
| Operating cost per hour | Low: gas + power | Power + tube replacement + gas | Medium |
Buyer concerns
Questions every shop owner asks before buying a laser cutting machine.
Will this laser cutting machine for metal really cut at the speeds you list?
Yes, on clean sheet with a factory-tuned head and dry assist gas. Real-world cycle times typically run within 10 to 15 percent of the cut chart. Send a DXF and we will quote a real cycle time on your specific part.
Can I run it on single-phase 220V?
Yes, the cabinet supports 1Ξ¦ 220V or 3Ξ¦ 380V at Β±10 percent, 50 or 60 Hz. Total connected load is roughly 8 to 10 kW including the chiller. We pre-configure to your local voltage before crating.
What if the fiber source fails after the warranty?
The Max Photonics source is rated for 100,000 hours of service life, and out-of-warranty replacement is a standard supply chain item, not a proprietary part. The cutting head, controller, and motion components are all globally available too.
How much operator training is needed?
An operator who has used AutoCAD or CorelDRAW is productive within one or two days. CypCut is drag-and-drop CAM. Training videos and DXF samples ship on the included USB stick, plus a remote training session over WhatsApp or TeamViewer.
How does this laser cutting machine compare to the $9,500 cutter I saw online?
Components. A cheaper fiber laser cutter for metal at this size typically substitutes unbranded servos, no-name guides, and a generic chiller. The HT-F1530 component list is fixed: PMI, TBI, Inovance, Schneider, SMC, Raytools, S&A. That is the difference between a machine that holds tolerance for ten years and one you fight every six months.
What about consumables?
Nozzles, protective lenses, and ceramic rings are standard parts that ship by air courier in three to five days. A consumables pack is included in the original crate to cover the first months of operation.
What this machine does not do well.
- Tube cutting. The HT-F1530 is a flat-sheet laser cutting machine. For round, square, or rectangular tube cutting, a dedicated tube laser is the right tool. A rotary attachment is available as an option but it is best for occasional small tubes, not production tube work.
- Plate cutting beyond 14 mm carbon steel. 1500W has a hard ceiling. If you regularly cut 16 mm or thicker carbon steel, the 2000W or 3000W variant on the same frame is the right answer.
- Surface marking and engraving. This is a cutting machine, not a galvo marker. For deep engraving on small parts, color marking on stainless, or jewelry-grade work, a galvo fiber laser like the 60W EM7 or 100W M7 is the correct tool.
- Wood, acrylic, leather, paper. Fiber wavelength does not interact well with organics. CO2 handles those materials. Fiber is for metals.
- Indoor cutting without ventilation. Cutting steel and stainless produces fume that has to be extracted. Plan for a smoke extractor or a shop-floor ventilation hood. The HT-F1530 does not include one in the base configuration.
Full spec sheet
HT-F1530 fiber laser cutting machine: detailed parameters.
Machine type
CNC fiber laser cutting machine for metal sheet
Model
HT-F1530
Laser type
Fiber laser, 1064 nm
Laser power
1500W (Max Photonics)
Working area
1500 Γ 3000 mm
Locating precision
Β±0.03 mm
Repeat precision
Β±0.02 mm
Maximum speed
80 m/min rapid
Max cut, carbon steel
14 mm
Max cut, stainless
7 mm
Max cut, aluminum
4 mm
Max cut, copper / brass
4 mm
Working voltage
1Ξ¦ 220V or 3Ξ¦ 380V Β±10%, 50 / 60 Hz
Working temperature
0 to 40 Β°C
Cooling
S&A industrial water chiller
Cutting head
Raytools BM110, auto-focus
Following system
Non-contact capacitive
Motion system
PMI rails, TBI ball-screws, Inovance servos
Speed reducer
Shimpo (Japan)
Electricals
Schneider (France)
Pneumatics
SMC (Japan)
Controller
CypCut + FSCut 2000
OS support
Windows 7 / 8 / 10 / 11, 32 and 64-bit
File formats
DXF, DWG, AI, PLT, BMP, GIF, JPG, PCX, TGA, TIFF, CDR
Machine size
4300 Γ 2400 Γ 1700 mm
Net weight
2,500 kg
Production lead time
15 days from cleared payment
Warranty
2 years machine, lifetime after-sales
What ships in the crate
Standard inclusions.
No surprise add-ons after the wire transfer. Everything below is in the FOB price.
- Main machine body, fully assembled and FAT-tested
- S&A industrial water chiller (1 set)
- Raytools BM110 auto-focus cutting head, pre-mounted
- 1500W Max Photonics fiber laser source, fitted
- CypCut + FSCut 2000 controller and license
- Cable harness, connectors, assist-gas hosing
- Operator USB stick, DXF samples and manual
- English user manual and electrical schematic
- Toolkit for alignment, calibration, service
- Spare nozzles and protective lenses (consumables pack)
- Plywood crate, fumigated, ready for sea freight
- Test-cut samples in the box (steel and stainless)
Optional add-ons: smoke extractor, exchange table, rotary attachment for tube cutting, upgrade to 2000W, 3000W, or 6000W source.
Frequently asked
Buyer FAQ.
Will this fiber laser cutter for metal cut my material?
If you cut steel, stainless, aluminum, copper, brass, or galvanized sheet up to the cut chart thicknesses, yes. The HT-F1530 is designed as a laser cutting machine for steel and other metals up to 14 mm carbon steel. For thicker plate or for production tube cutting, the 2000W or 3000W variant of the same frame is usually the right call: same Taiwan motion system, larger fiber source. Send a sample DXF and material spec, and we will quote a real cycle time on your specific part.
What is the all-in cost including shipping and import?
FOB price is $19,500. CFR to your seaport adds the ocean freight, which is port-dependent. On arrival you handle import duty and VAT, which are determined by your country's tariff code for HS 8456.11 (laser cutting machines). Haotian supplies the Certificate of Origin, Commercial Invoice, Packing List, and Bill of Lading documents.
What power supply does the machine need?
The HT-F1530 runs on 1-phase 220V or 3-phase 380V at Β±10 percent, 50 or 60 Hz. Most shops in North America wire it to 3-phase for chiller efficiency. In Europe and most of Latin America, 3-phase 380V is standard. Total connected load is roughly 8 to 10 kW including the chiller. The cabinet is pre-configured to your local voltage before crating.
Do I need to be a CNC operator to run this machine?
No. Although the HT-F1530 is a CNC fiber laser cutting machine, CypCut is drag-and-drop CAM. If your operator can use AutoCAD or CorelDRAW, they can program a job in 20 minutes: import DXF or DWG, auto-nest, set lead-in and lead-out, cut. A video tutorial library ships in the box and a remote training session over WhatsApp or TeamViewer with a Haotian engineer is included.
What is the production lead time?
15 days from cleared deposit to crate-ready. Every machine runs a 24-hour bench test minimum before shipping, and the test cuts are packed inside the crate so your QA team can inspect them on arrival. Sea freight from China to most major ports adds 25 to 35 days.
What is the warranty and what happens if something fails?
The full machine carries a 2-year warranty, including the fiber source, motion system, electricals, and chiller. Lifetime technical after-sales support covers the controller and cutting head. Consumable spares (nozzles, protective lenses, ceramic rings) ship by air courier in three to five days. Major-component spares (head, servo, source) are stocked and ship in seven days.
How is this fiber laser cutting machine different from cheaper imports online?
Components. At the $9,500 price point, a laser cutting machine at this size typically uses unbranded servo motors, no-name linear guides, a generic chiller, and a re-skinned controller. The frame may be unstressed plate. The HT-F1530 specification is fixed: PMI Taiwan rails, TBI Taiwan ball-screws, Inovance servos, Schneider electricals, Raytools BM110 head, S&A chiller, CypCut + FSCut 2000. That is the difference between a fiber laser cutter for metal that holds tolerance for ten years and one you fight every six months.
Can I see test cuts on my own material before ordering?
Yes. Send a DXF and a description of the material (grade, thickness, finish) and Haotian can run a sample cut on the test bay machine, photograph and video the result, and ship the physical sample to your address. This is the closest thing to a hands-on demo that an online sale allows.
2-year warranty, lifetime after-sales.
Two years of full coverage on the fiber source, motion system, electricals, and chiller. Lifetime technical support on the controller and cutting head. Spare parts shipped to your seaport, with the broken part staying with you on consumable replacements.
- Source defects covered by JPT-class manufacturer warranty
- Air courier on consumables in three to five days
- Major-component spares stocked and ready to ship
15-day lead time, CFR to your seaport.
From cleared wire transfer to crate-ready in 15 days. Each machine bench-tested for 24 hours minimum and FAT-recorded before it ships, with the test cuts packed inside the crate. CFR pricing covers ocean freight to your nearest major seaport.
- Plywood crate, fumigated, ready for sea freight
- Sea transit 25 to 35 days to most major ports
- CO, CI, PL, and BL documents supplied for customs
