🏭 Flagship Power
⚡ 350W M7 MOPA
🔬 JPT Source
🛡️ 3-Year Warranty
Free DDP Shipping
US, Canada, EU. Duties paid
S&A CW3000 Chiller
Industrial water cooling
500mm Z-Tower
Tall workpieces supported
3-Year Coverage
Source plus full machine
Built to Order
Custom configurations
Maximum Power Flagship
350W JPT M7 MOPA Fiber Laser for Industrial Throughput
Why Buy Our Most Powerful Fiber Laser
The 350W M7 cuts your deep engraving cycle times to a fraction of what smaller machines need, generating real ROI within the first quarter for production shops. Its JPT MOPA M-version source delivers professional-grade pulse control that no Raycus or LP machine can match, letting you take on contracts that competitors must turn down. And the S&A CW3000 industrial chiller with full water-cooling system is engineered for round-the-clock operation, meaning the machine you buy today will still be earning money for you in five years.
This is the highest output fiber laser in the Haotian range. We built it for one type of customer: the production shop, contract manufacturer, or industrial operator who needs the absolute fastest deep engraving, the deepest single-pass marks, and the broadest cutting capability available from a galvo fiber laser system. If you have hit the ceiling on a 100W or 200W machine, this is the next step.

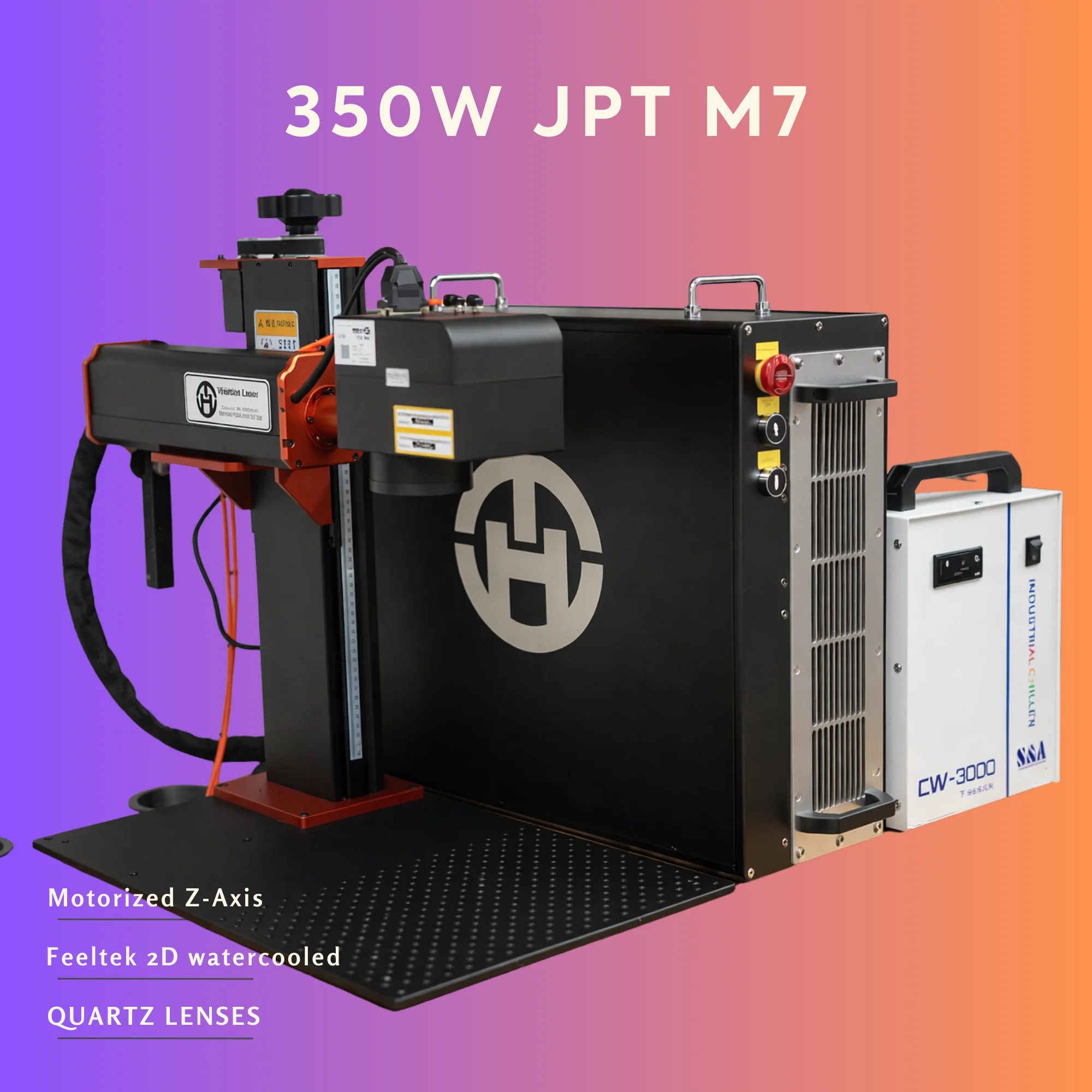

The 350W is built around the JPT M-version M7 MOPA source with imported seed and pump diodes, paired with a Feeltek 2D scanning head, motorized 500mm Z-tower for tall workpieces, EZCAD original software (not the Lite version), and a complete S&A CW3000 industrial water-cooling system. Every component is selected for sustained high-power operation, not just peak performance during demos.
Built for Production
Five Reasons Production Shops Choose This Machine
1
Cycle Times Drop Dramatically Versus Lower Power Machines
The JPT M7 350W source delivers over 3x the average power of a 100W machine, which translates directly into faster material removal during deep engraving and meaningful cuts on thicker metal sheets. A deep mark that takes 8 minutes on a 100W finishes in roughly 2 minutes here. Across hundreds of parts per shift, that is hours of saved labor time.
2
JPT M-Version Source Means Production-Grade Reliability
The M-version (not E or E2) of the JPT M7 series uses imported seed diodes and pump diodes from Canada and France, the highest grade JPT offers for the M7 line. These components deliver the long-term beam stability and continuous-duty endurance that 24/7 production environments require. Seed source quality directly affects beam consistency over thousands of operating hours.
3
S&A CW3000 Water Cooling Keeps the Source at Optimal Temperature
The included S&A CW3000 industrial chiller is the standard cooling solution for high-power fiber laser sources. It maintains the JPT M7 at a stable thermal operating point during continuous high-duty-cycle work, preventing the thermal drift and beam quality degradation that destroys lower-end air-cooled machines pushed beyond their limits. The chiller is included in the price.
4
Motorized 500mm Z-Tower Handles Tall and Awkward Workpieces
The full 500mm motorized Z-axis tower lets you process tall objects, large irregular parts, and multi-stack production fixtures that smaller fiber lasers cannot accommodate. Button-controlled height adjustment means no manual cranking, and the motorized travel gives repeatable focus positions across batches of varied parts. Practical for industrial production runs.
5
EZCAD Original (Not Lite) Plus LightBurn Compatibility
This machine ships with the full original EZCAD controller and software, not the limited Lite version that comes with budget machines. You get every feature for production marking, color marking parameter control, and advanced job automation. LightBurn compatibility on Windows, macOS, and Linux is included for users who prefer that workflow. No software lock-in.
Technical Data
Complete Specifications
| Laser Source | JPT M7 MOPA, M-version (imported seed and pump diodes) |
| Average Output Power | 350W (highest in Haotian fiber range) |
| Wavelength | 1064 nm |
| Pulse Width Range | 2 to 500 ns (independently adjustable, full MOPA control) |
| Pulse Frequency Range | 1 to 4,000 kHz (independently adjustable) |
| Galvo Scanning Head | Feeltek 2D high-speed scanner |
| Standard Working Area | 110 x 110 mm |
| Optional Working Areas | Up to 300 x 300 mm |
| Z-Axis Type | Motorized 500mm Z-tower for tall workpieces |
| Lens Type | Quartz F-theta (required at this power level) |
| Controller | EZCAD Original (not Lite version) |
| Software Compatibility | EZCAD Original, LightBurn (Windows, macOS, Linux) |
| Cooling System | S&A CW3000 industrial water chiller (included) |
| Cooling Type | Water cooled (required at 350W) |
| Watercooling Head | Integrated water-cooled scanning head |
| Focus Positioning | Dual red dot pointer for precise focus alignment |
| Foot Pedal | Hands-free production switch (included) |
| Source Lifespan | Over 100,000 hours rated operation |
| Power Supply | 110V to 240V, 50 to 60 Hz |
| Body Material | 100% aluminum (custom colors available) |
| Color Marking | Full spectrum on stainless steel and titanium |
| Deep Engraving | Multi-millimeter depth on metals (material dependent) |
| Thin Metal Cutting | Up to 3 mm depending on material and assist |
| Warranty | 3 years on laser source and complete machine |
| Shipping | Free DDP worldwide (US, Canada, EU in approximately 30 days) |
What Buyers Worry About
We Already Solved The Common Problems
Buying a 350W fiber laser is a serious investment, and the questions we hear most often have little to do with power and everything to do with getting the machine working in your shop. Here are the issues we have already addressed.
Setup Time and Installation
Plug, cool, mark. The machine arrives pre-assembled and pre-tested at our factory. The S&A CW3000 chiller connects with two water lines and one power cable. EZCAD installs from a USB drive. Most customers are running their first job within 90 minutes of unboxing. No technician visit required.
Software Compatibility and LightBurn
LightBurn works out of the box. The JCZ control board is fully recognized by LightBurn galvo mode on Windows, macOS, and Linux. EZCAD Original is also included for users who prefer it. Use both, switch between them, no licensing tricks.
Customs Fees and Hidden Costs
The price you see is the price you pay. Free DDP shipping to the US, Canada, and EU means all customs duties, import taxes, and brokerage fees are included. No surprise invoices when the freight forwarder calls. Zero cost at the door.
Parts and Service for High-Power Machines
3 years of full coverage plus lifetime support. Broken non-source parts ship to you free with no return required. Source or galvo defects are repaired or replaced through warranty with all shipping covered. After warranty, we still answer email forever.
Whether 350W is Actually Necessary
If you are asking, you may not need it. The 350W earns its premium for shops doing high-volume deep engraving, mold cavity work at scale, or thin metal cutting on production runs. For marking and color work, our 100W M7 is the better value at $6,900.
Workshop Power and Electrical Requirements
Standard workshop power is sufficient. The 350W M7 system runs on standard 110V to 240V single-phase power at 50/60 Hz. No three-phase requirement. Total system draw stays within typical workshop circuit ratings, including the chiller. Any commercial space or well-equipped home workshop can power this machine.
In the Crate
Everything That Ships With Your Machine
We do not strip features to hit a price point. Every component required for production work is included.
JPT M7 350W MOPA laser source, M-version with imported seed and pump diodes. Over 100,000 hours rated lifespan.
Feeltek 2D high-speed scanning head with watercooling integration for sustained high-power operation.
S&A CW3000 industrial water chiller sized for continuous 350W operation. Industry standard cooling solution.
Motorized 500mm Z-axis tower for tall workpieces, multi-part fixtures, and varied production setups.
110 x 110 mm standard quartz F-theta lens with optional sizes up to 300 x 300 mm available at order.
EZCAD original controller and software (not the Lite version) with full feature access for production work.
LightBurn compatibility built in for Windows, macOS, and Linux users.
Dual red dot pointer system for accurate focus positioning before firing the laser.
Foot pedal switch for hands-free production batch operation.
OD5+ certified safety glasses rated for 1064 nm wavelength laser eye protection.
Rotary attachment in your choice of D60, D80, or D100 for cylindrical workpieces.
Detailed Questions
Frequently Asked Questions
What is the M-version of the JPT M7 source?
The JPT M7 series is offered in three internal grades: E, E2, and M. The M-version is the highest grade, using imported seed diodes and pump diodes from suppliers in Canada and France. These higher-grade components deliver superior beam quality stability over thousands of operating hours and are the JPT M7 source that production shops specify when reliability matters more than cost. The 350W in this machine is the M-version.
What is the difference between EZCAD Original and EZCAD Lite?
EZCAD Lite is a stripped-down version that ships with budget fiber lasers. It has limited file format support, no advanced job automation, and reduced parameter control. EZCAD Original (what ships with this machine) is the full software with every feature: complete file format support, MOPA pulse width and frequency control, batch processing, automatic counters, barcode and QR code generation, photo grayscale conversion, and production-grade job queuing. We include the original because production shops need it.
Can the 350W cut metal sheets?
Yes, with limits. This is a galvo marking laser, not a dedicated CNC cutting machine. It cuts thin metal sheets up to about 3 mm depending on material and air assist setup. For thicker production sheet metal cutting, our CNC fiber laser cutters from 1500W to 6000W are the right tool. The 350W M7 is best for marking, deep engraving, and occasional thin cutting where the same machine handles both jobs.
Why is water cooling required at 350W?
Average output power above approximately 100W generates more thermal load than air cooling can dissipate during continuous operation. At 350W, active liquid cooling is mandatory to keep the laser source within its optimal thermal range. The S&A CW3000 industrial chiller circulates coolant through the laser source and the watercooling head, removing heat efficiently and maintaining beam quality during long production runs. The chiller is included free with the machine.
What does the Feeltek 2D scanning head bring to the machine?
Feeltek is a respected galvo scanner manufacturer used in production-grade fiber laser systems. The 2D head on this machine is built to handle high-power throughput with the same response time and accuracy as smaller-power galvos, while integrating with the watercooling system to keep the optics stable. Pairing a high-quality scanner with the JPT M7 M-version source means the entire optical chain is production-grade, not just the laser tube.
Can I do color marking on stainless steel with 350W?
Yes. The 350W M7 is a full MOPA laser with adjustable pulse width from 2 to 500 nanoseconds, the same range as smaller M7 machines. You can produce the full color spectrum on stainless steel and titanium, black annealing on anodized aluminum, and all the same color effects as a 60W or 100W. The 350W just does it faster.
How long does delivery take to my country?
Approximately 30 days to the US, Canada, and EU using DDP shipping with all customs duties included. Faster CIF shipping (approximately 12 days) is available worldwide. The machine is built to order, so production lead time is included in those windows. We ship from our China factory directly to your door.
Is this the right machine for me, or should I consider 200W M8?
Two different needs. The 350W M7 is the right choice when you need maximum throughput for deep engraving and marking jobs at high volume, and you do not need glass drilling. The 200W M8 is the right choice when glass drilling is part of your work, even at the cost of slightly lower average output power. Both are flagship machines for different production specialties.
After You Buy
3-Year Coverage and Lifetime Email Support
The 350W M7 carries the same 3-year warranty as every Haotian machine, covering both the JPT laser source and the complete machine including the Feeltek scanning head, water chiller, motorized Z-tower, and electronics.
Free replacement parts for 3 years. Non-source components that fail due to manufacturing defects are shipped to you at no cost. The broken part stays with you. Haotian pays all shipping.
JPT laser source warranty. Defective laser sources must be returned for repair or replacement under JPT warranty. Haotian arranges everything and pays both ways.
Feeltek galvo head coverage. Same return process. Defective scanning heads are repaired or replaced through the warranty channel at no cost.
Lifetime email support. Reach our team at info@haotianlasers.com for any technical question, settings advice, or operation help. Forever.
50,000+ member Facebook community sharing settings, project photos, and troubleshooting daily.
Delivery
Free Worldwide Shipping
Built to order, then shipped directly from our factory to your door with full tracking. Customers in the United States, Canada, and the European Union receive DDP shipping with all customs duties, import taxes, and brokerage fees included in the purchase price. The amount you pay at checkout is the total cost. CIF shipping is available worldwide for faster delivery in approximately 12 days.
Other Power Levels
Browse the Full Range
Get Maximum Power, Built for Production
The 350W JPT M7 is the highest output fiber laser we make. Industrial water cooling, JPT M-version source, EZCAD Original, 3-year warranty, and free DDP shipping with duties paid.
